Index > Products Center > Cataract Surgery > Preloaded Intraocular Lens System

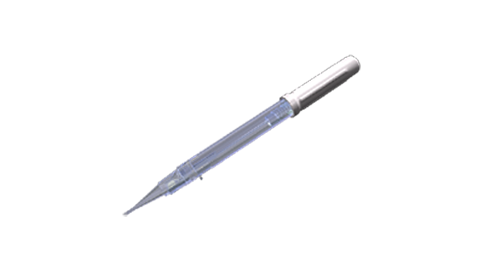

Preloaded Intraocular Lens System (A1UL, High Order Aspheric Clear)

ONE step implantation
Safe and controllable handling
A1-UV IOL preloaded; UV blocking
Product Description

Product Parameters:


Product model

A1UL22, A1UL24, A1UL28

IOL Material

Hydrophobic acrylic

Body diameter

6.0mm

Overall diameter

13.0mm

Optimized Constants

Ultrasound biometry A=118.9

Optical biometry A=119.2

SRK/T A=119.2

SRK Ⅱ A=119.6

Haigis a0=1.50, a1=0.40, a2=0.10

Hoffer Q pACD=5.69

Holladay sf=1.95

Holladay Ⅱ ACD=5.69

Barrett LF=2.0, DF=2.5

Optical design

Concave-convex or biconvex

Haptic Configuration and Angulation

Modified L-haptic with 1.5° angulation

Photoprotection

UV blocking

Diopter Range and Increments

-10.0 D to +36.0 D, in 0.5 D increments
