Index > Products Center > Cataract Surgery > Intraocular Lens

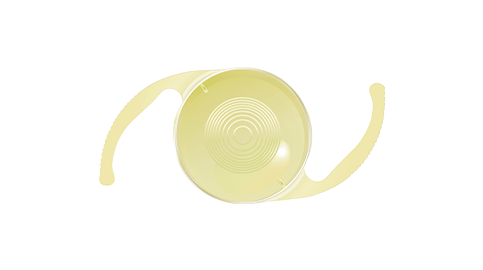

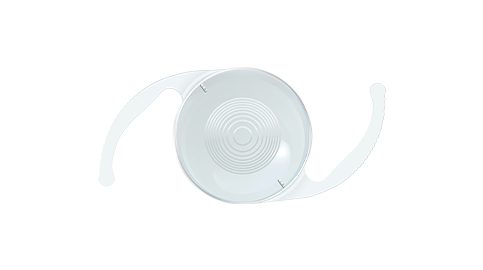

Intraocular Lens (AE2UV, EDoF)

Hydrophobic acrylic
Physical structure: modified L-haptic with 1.5° angulation, 360° square edge;
Biconvex
Product Description

Product Parameters:


Product model

AE2UV

Material

Hydrophobic acrylic

Body diameter

6.0mm

Overall diameter

13.0mm

Optimized Constants

Ultrasound biometry A=118.9

Optical biometry A=119.2

SRK/T A=119.2

SRK Ⅱ A=119.6

Haigis a0=1.50, a1=0.40, a2=0.10

Hoffer Q pACD=5.69

Holladay sf=1.95

Holladay Ⅱ ACD=5.69

Barrett LF=2.0, DF=2.5

Optical design

Biconvex

Haptic Configuration and Angulation

Modified L-haptic with 1.5° angulation

Photoprotection

UV blocking

Diopter Range and Increments

+5.0~+36.0D, in 0.5D increments
